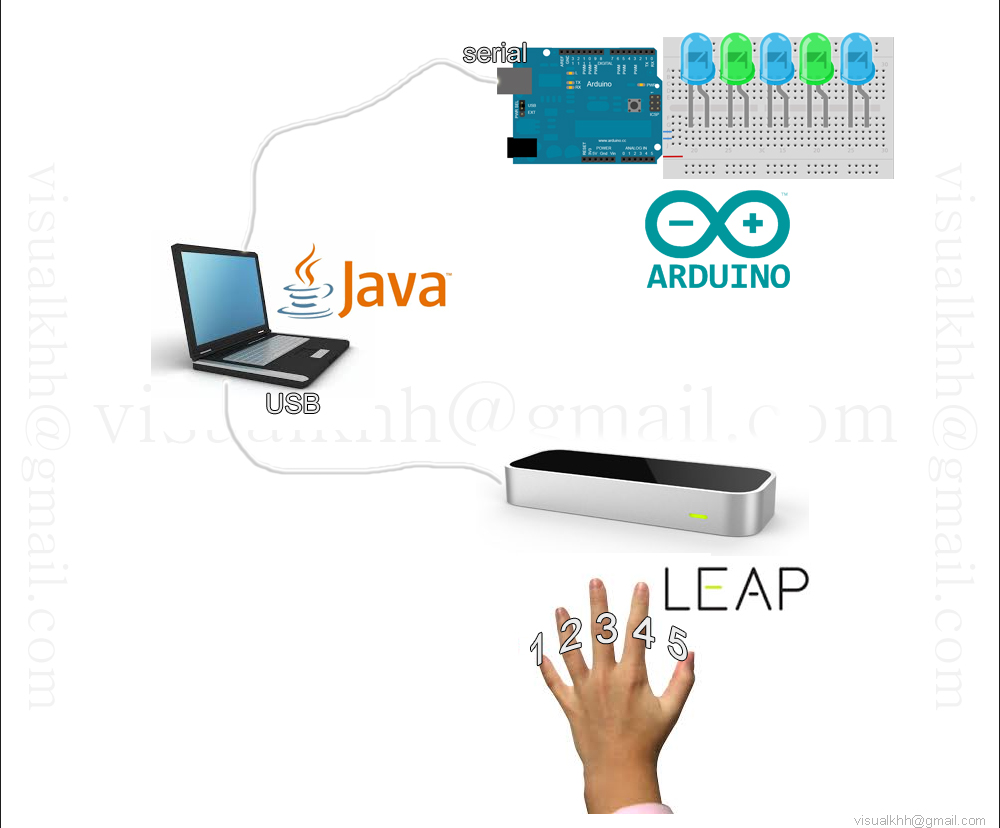

립모션 이용 아두이노 LED제어 leapmotion + arduino

package khh.io.motion.leap;

import java.io.IOException;

import javax.comm.SerialPortEvent;
import javax.comm.SerialPortEventListener;

import khh.communication.serial.SerialCommunication;
import khh.communication.serial.SerialParameters;

import com.leapmotion.leap.Controller;
import com.leapmotion.leap.Finger;
import com.leapmotion.leap.FingerList;
import com.leapmotion.leap.Frame;
import com.leapmotion.leap.Gesture;
import com.leapmotion.leap.Hand;
import com.leapmotion.leap.Listener;
import com.leapmotion.leap.Pointable;
import com.leapmotion.leap.PointableList;
import com.leapmotion.leap.Vector;

public class LeapToSerialSenderListener extends Listener  implements SerialPortEventListener{
    SerialCommunication sc;
    public LeapToSerialSenderListener() {
        sc = new SerialCommunication();
        SerialParameters params = new SerialParameters();
        params.setPortName("COM4");
        sc.setSerialParameters(params);
        try{
            sc.addEventListener(this);
            sc.openConnection();
        }catch(Exception e){
            e.printStackTrace();
        }
    }

    public void onInit(Controller controller) {
        System.out.println("Initialized");
      }

      public void onConnect(Controller controller) {
        System.out.println("Connected");
        controller.enableGesture(Gesture.Type.TYPE_SWIPE);
        controller.enableGesture(Gesture.Type.TYPE_CIRCLE);
        controller.enableGesture(Gesture.Type.TYPE_SCREEN_TAP);
        controller.enableGesture(Gesture.Type.TYPE_KEY_TAP);
      }

      public void onDisconnect(Controller controller) {
        System.out.println("Disconnected");
      }

      public void onFrame(Controller controller) {
          System.out.print(".");
          Frame frame = controller.frame();
          float left = frame.pointables().leftmost().tipPosition().getX();
          float right = frame.pointables().rightmost().tipPosition().getX();
          float front = frame.pointables().frontmost().tipPosition().getZ();

          float back = backmost(frame.pointables()).tipPosition().getZ();
          float top = topmost(frame.pointables()).tipPosition().getY();
          float bottom = bottommost(frame.pointables()).tipPosition().getY();

          int i=0;
          if (!frame.hands().isEmpty()) {
              Hand hand = frame.hands().get(0);
              FingerList fingers = hand.fingers();
              if (!fingers.isEmpty()) {
                  // Calculate the hand's average finger tip position
                  Vector avgPos = Vector.zero();
                  for (Finger finger : fingers) {
                      avgPos = avgPos.plus(finger.tipPosition());
                  }
                  avgPos = avgPos.divide(fingers.count());
                  System.out.println("Hand has " + fingers.count()
                                   + " fingers, average finger tip position: " + avgPos);

                 i = fingers.count();
              }
          }
          try {
              sc.getBufferedwriter().write(i);
              sc.getBufferedwriter().flush();
          } catch (IOException e) {
              e.printStackTrace();
          }
      }
      Pointable backmost(PointableList pointables)
      {
          if(pointables.count() == 0) return Pointable.invalid();
          Pointable backmost = pointables.get(0);
          for( int p = 1; p < pointables.count(); p++ )
          {
              if(pointables.get(p).tipPosition().getZ() > backmost.tipPosition().getZ())
                  backmost = pointables.get(p);
          }
          return backmost;
      }
      Pointable topmost(PointableList pointables)
      {
          if(pointables.count() == 0) return Pointable.invalid();
          Pointable topmost = pointables.get(0);
          for( int p = 1; p < pointables.count(); p++ )
          {
              if(pointables.get(p).tipPosition().getY() > topmost.tipPosition().getY())
                  topmost = pointables.get(p);
          }
          return topmost;
      }

      Pointable bottommost(PointableList pointables)
      {
          if(pointables.count() == 0) return Pointable.invalid();
          Pointable bottommost = pointables.get(0);
          for( int p = 1; p < pointables.count(); p++ )
          {
              if(pointables.get(p).tipPosition().getY() < bottommost.tipPosition().getY())
                  bottommost = pointables.get(p);
          }
          return bottommost;
      }

    @Override
    public void serialEvent(SerialPortEvent arg0) {
        // TODO Auto-generated method stub

    }
}

package khh.io.motion.leap;
import java.io.IOException;


import com.leapmotion.leap.Controller;


public class LeapToSerialSender {

    public static void main(String[] args) {

        LeapToSerialSenderListener listener = new LeapToSerialSenderListener();
        Controller controller = new Controller(listener);


        // Keep this process running until Enter is pressed
        System.out.println("Press Enter to quit...");
        try {
                    System.in.read();
            } catch (IOException e) {

            }

        //The controller must be disposed of before the listener
        controller = null;
    }

}

// digital pin 2 has a pushbutton attached to it. Give it a name:
//int pushButton = 2;

int selected_led = 0;

int led_1 = 6;
int led_2 = 7;
int led_3 = 8;
int led_4 = 9;
int led_5 = 10;


boolean sw = true;

int incomingByte = 0;
// the setup routine runs once when you press reset:
void setup() {
  // initialize serial communication at 9600 bits per second:
  Serial.begin(9600);
//  pinMode(pushButton, INPUT);
  pinMode(led_1, OUTPUT);
  pinMode(led_2, OUTPUT);
  pinMode(led_3, OUTPUT);
  pinMode(led_4, OUTPUT);
  pinMode(led_5, OUTPUT);

  digitalWrite(led_1, LOW);
  digitalWrite(led_2, LOW);
  digitalWrite(led_3, LOW);
  digitalWrite(led_4, LOW);
  digitalWrite(led_5, LOW);
}

// the loop routine runs over and over again forever:
void loop() {

 incomingByte = Serial.read();
if(incomingByte==0x0){//1
  digitalWrite(led_1, LOW);
  digitalWrite(led_2, LOW);
  digitalWrite(led_3, LOW);
  digitalWrite(led_4, LOW);
  digitalWrite(led_5, LOW);
}else if(incomingByte==0x1){//1
  digitalWrite(led_1, HIGH);
  digitalWrite(led_2, LOW);
  digitalWrite(led_3, LOW);
  digitalWrite(led_4, LOW);
  digitalWrite(led_5, LOW);
 }else if(incomingByte==0x2){//2
  digitalWrite(led_1, HIGH);
  digitalWrite(led_2, HIGH);
  digitalWrite(led_3, LOW);
  digitalWrite(led_4, LOW);
  digitalWrite(led_5, LOW);
 }else if(incomingByte==0x03){ //3
  digitalWrite(led_1, HIGH);
  digitalWrite(led_2, HIGH);
  digitalWrite(led_3, HIGH);
  digitalWrite(led_4, LOW);
  digitalWrite(led_5, LOW);
 }else if(incomingByte==0x04){ //4
  digitalWrite(led_1, HIGH);
  digitalWrite(led_2, HIGH);
  digitalWrite(led_3, HIGH);
  digitalWrite(led_4, HIGH);
  digitalWrite(led_5, LOW);
 }else if(incomingByte==0x05){ //5
  digitalWrite(led_1, HIGH);
  digitalWrite(led_2, HIGH);
  digitalWrite(led_3, HIGH);
  digitalWrite(led_4, HIGH);
  digitalWrite(led_5, HIGH);
 }




}
